BRINGING TECHNOLOGY INTO THE TILLAGE WORLD
The Harvest International planter bars are renowned for their industry-leading quality and performance. Now, get ready for the highest of quality of tillage bar ever designed - by farmers, for farmers.
Featuring CT20 S1
Dual season use
Prepare your seed beds in spring, and manage your residue in the fall. All with one versatile machine.
High speed & performance
Tested to reach up to 12mph, save time without sacrificing performance.
standard features by series
Options may vary by configuration. Subject to change without notice.
CT20 SERIES 1
Conventional hydraulic system
Mechanical wing downforce
Hydraulic safety jack
High visibility LED worklights
Domestically-produced hydraulic cylinders
Fixed-pitch adjustable gangs
Configurable 22” smooth or notched discs
HD oversized triple lip seal on disc hub and bearing unit
Flipover cylinder stops

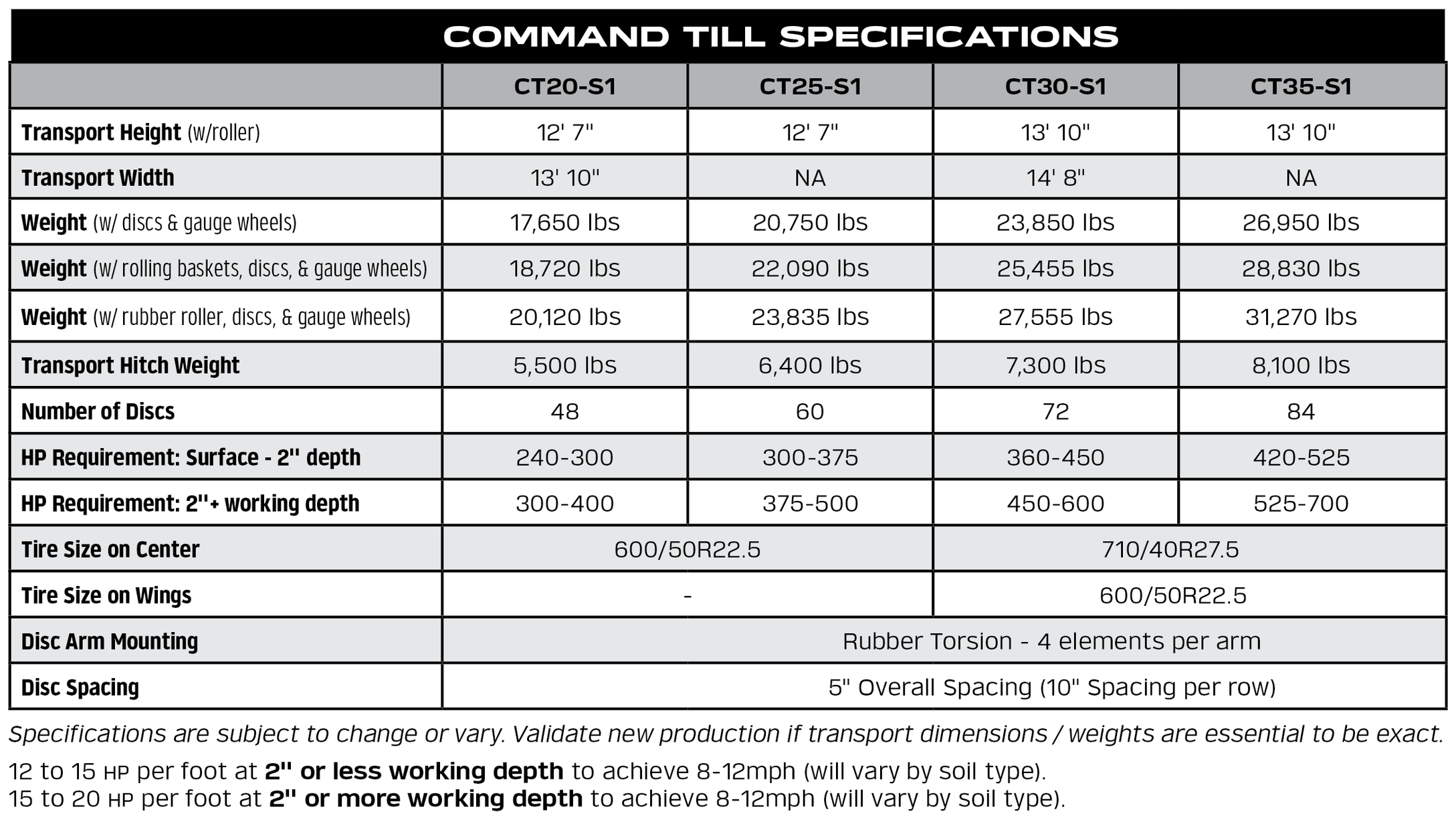

SPECIFICATIONS
| Model Specifications | CT20-S1 | |||||
|---|---|---|---|---|---|---|
| Transport height with roller | 12'-1" | |||||
| Transport width | 13'-10" | |||||
| Weight (with discs & applicable gauge wheels) | 17,650lbs | |||||
| Weight (with discs, gauge wheels & rolling baskets) | 20,118lbs | |||||
| Weight (with discs, gauge wheels & rubber roller) | 20,118lbs | |||||
| Transport Hitch Weight | 5,500lbs | |||||
| Number of Discs | 48 | |||||
| Tire size - center section | 600/50R22.5 | |||||
| Gauge Wheels | None | |||||
| HD Disc arm mounting | Rubber Torsion - 4 elements per arm | |||||
| Disc spacing | 5" overall spacing (10" spacing per row) | |||||
Specifications are subject to change without notice.
horsepower requirements
| Horsepower by Foot | |||
|---|---|---|---|
| 12HP | 15HP | 20HP | |
| CT20-S1 | 250 | 300 | 400 |
Tilling at a depth of 2” or less requires 12 to 15 hp per foot to reach 8-12mph
Tilling at a depth of 2” or more requires 15 to 20 hp per foot to reach 8-12mph
Horsepower requirements will vary by soil type.
Specifications are subject to change without notice.
